Subwoofer d&b Audiotechnik 27S SUB

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

DESCRIPTION

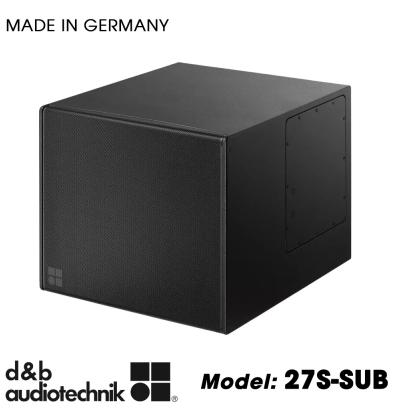

The d&b audiotechnik 27S-SUB is a compact, flyable subwoofer with dual neodymium long-throw drivers in an impact resistant, bass-reflex cabinet with an integrated rigging system in the side panels.

The 27S-SUB is a compact, flyable subwoofer built for use with d&b audiotechnik xA-Series and xS-Series loudspeakers. A high-performance, 2,000W (peak) design with a maximum SPL of 132dB, the cabinet houses two long excursion neodymium drivers in an integrated cardioid setup: a 15″ driver in a bass-reflex design facing to the front and a 12″ driver in a two chamber band-pass design radiating to the rear. It can be used in stand-alone, stacked, or as a base for a mixed ground stack. While the d&b 27S-SUB and 27A-SUB share the same internal components and specifications, the distinguishing factor is that the 27A can also be combined with 10A and 10AL loudspeakers in vertical flown arrays. The 27S enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools, sports arenas, and multipurpose halls.

D&B AUDIOTECHNIK 27S-SUB-SUB—AT A GLANCE:

• Installation-specific, cardioid flyable compact subwoofer
• 15″ and 12″ front- and rear-facing (respectively) long-throw neodymium drivers
• Bass-reflex design
• Cardioid dispersion
• Use in standalone, stacked, or as a base for a mixed ground stack
• Integrated rigging system for vertical arrays
• 131dB maximum SPL

D&B AUDIOTECHNIK 27S-SUB—PARSING THE DETAILS

The front of the loudspeaker cabinet is protected by a rigid metal grille backed by an acoustically transparent foam. The side panels have an integrated rigging system and the rear panel incorporates two Neutrik NL4 speakON connectors, as well as a two-pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Color (SC) option that can be executed in all RAL* colors, whilst the Weather Resistant (WR) option provides an IP55* rating, and enables operation of loudspeakers in changing ambient conditions.

*RAL is a color-matching system that defines standard colors for varnish, powder coating, and plastics. It’s the most popular Central European color standard used today.

**The IP Code or International Protection Rating, sometimes also interpreted as Ingress Protection Rating. IP55: Protected from limited dust ingress. Protected from low-pressure water jets from any direction.

27S-SUB-SUB rigging components

The 27S-SUB side panels are each equipped with a pair of M10 threads to accept the Z5410 Horizontal bracket (18S/27S). The threaded inserts are covered by dummy caps in cabinet color. (The caps must be removed before mounting any accessories.) For use as a base, the 27S-SUB is equipped with four rubber feet to prevent cabinet movement and protect the bottom panel against scratching. The cabinet is Ball-Impact Resistant according to DIN 18032-3.

Compatible amplifiers

The d&b amplifiers are designed specifically to power d&b loudspeakers, forming the heart of the d&b System. They incorporate digital signal processing for comprehensive loudspeaker management, switchable filter functions, remote capabilities, and user-definable controls to fulfill the exact needs of each application.

The d&b 30D amplifier is recommended to drive the 27S-SUB. The d&b D20, D80, 10D, and D6 can also be used.

27S-SUB applications:

• Theater and Opera
• Nightclubs and bars
• Houses of Worship

System data

Frequency response (-5 dB standard): 40 - 140 Hz

Frequency response (-5 dB 100 Hz mode): 40 - 100 Hz

Max. sound pressure¹
with 10D: 128 dB
with D20/30D: 131 dB
with D40/D80/40D: 131 dB

Cabinets per amplifier channel: 2

Loudspeaker data

Configuration: Installation specific cardioid subwoofer

Nominal impedance: 6 Ω

Power handling capacity (RMS/peak 10 ms): 500/2000 W

Components: 15" driver with neodymium magnet front/12" driver with neodymium magnet rear

Connections: 2 x NL4/screw terminal block

Dimensions / weight

Dimensions (H x W x D): 490 x 580 x 700 mm/19.3 x 22.8 x 27.6"

Weight: 41 kg/90 lb
