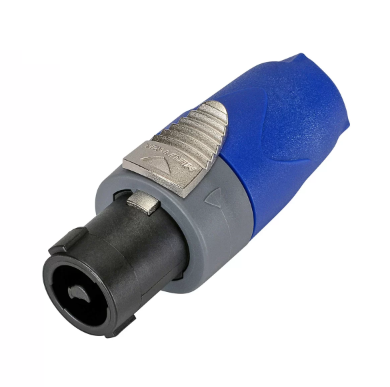

Jack Loa Neutrik NL2FX

Jack Loa Neutrik NL2FX
Liên hệ
Số lượng
Còn hàng (Vui lòng liên hệ trực tiếp)

Thông số kỹ thuật của NEUTRIK NL2FX

- Connection Type : speakON
- Gender : female
- Contact resistance : < 2 mΩ (after lifetime)
- Dielectric strength : 4 kVdc (peak)
- Insulation resistance : > 1 GΩ (after dampheat)
- Rated current per contact : 40 A rms continuous
- Rated current per contact : 50 A audiosignal, duty cycle 50 %
- Rated voltage : 250 V (Insulation)
- Able O.D: 6 - 10 mm
- Cable retention: ≥ 220 N (subject to cable O.D. and material)
- Lifetime : > 5000 mating cycles
- Wiresize: 1.5 - 4 mm²
- Wiresize: 16 - 12 AWG

0968149866
Gọi ngay 0968149866 để được tư vấn tốt nhất!
Tình trạng: Còn hàng
Thương hiệu: Neutrick
